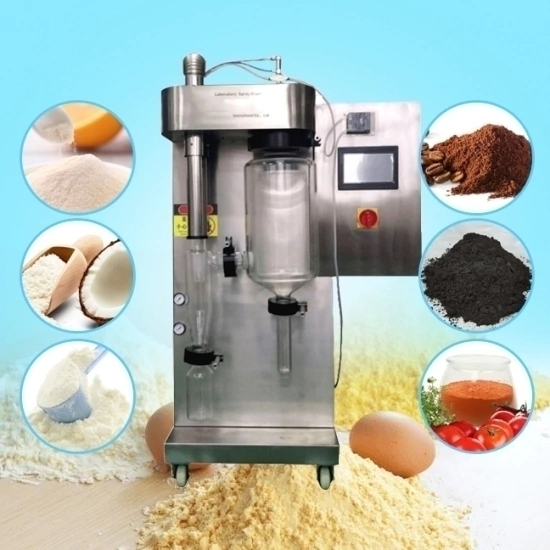

Spray drying machine is especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
Parameter
Model |
OLT-SD8000B |
Max capacity |
1500-2000ml/h |
Min capacity | 30ml |
Temperature range of Inlet air |
30C -280C |
Temperature range of outlet air |
40C -120C |
Precision of temperature |
± 1 C |
Dryer time |
1.0-1.5 S |
Speed of squirmy pump |
30-2000ml/h |
Consume of dryer air |
0-330m3 /h, max pressure: 686Pa |
Consume of spray air |
0-4.2m3 /h, spray pressure: 2-5bar |
Spray system |
2 liquid nozzles with standard 1.0mm jet options of 0.5/1.0/1.5/2.0/2.5mm |
Powder size | 1-120um |
Spray direction |
downwards co-current |
Power |
3.5KW 220V-240V |
Dimensions |
750*900*1400 ( mm ) L * W* H |
Gross weight
|
130kg |
Cbm | 0.945cbm |
