Multi position parallel reactor is an upgraded and integrated product of the basic model, which greatly saves space resources. This reactor is mainly used in laboratory parallel test, constant variable comparative analysis test, etc.
There are two modes: simultaneous temperature control and independent temperature control. The main difference between parallel reactors is that the volume, mixing form, work number, structural form, control mode, function configuration, etc. of the reactor can be combined freely according to the actual needs
Specification

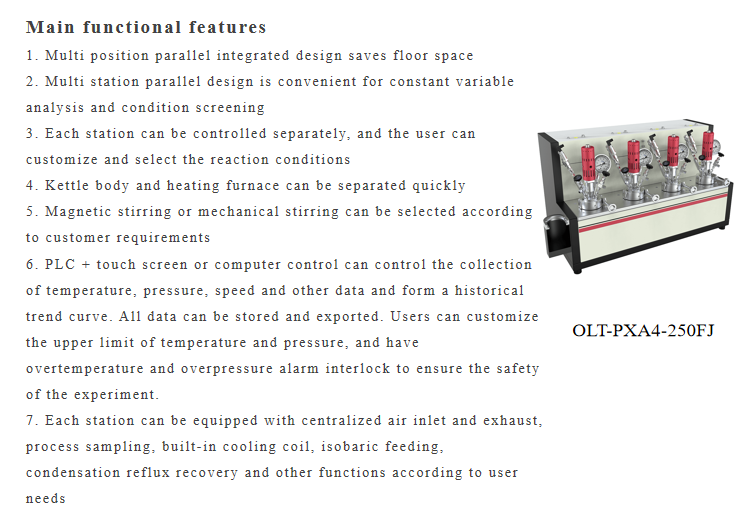

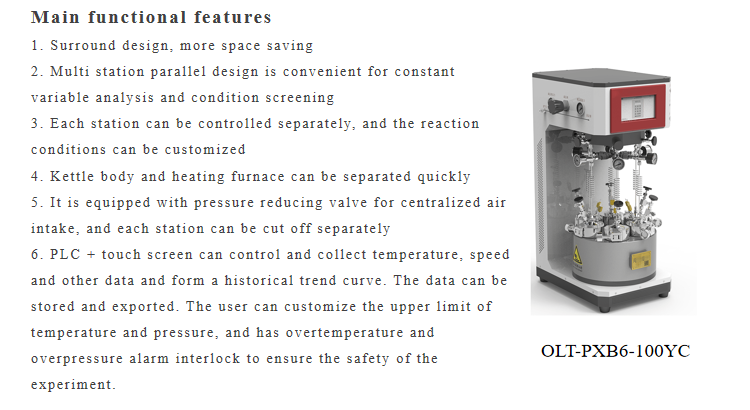

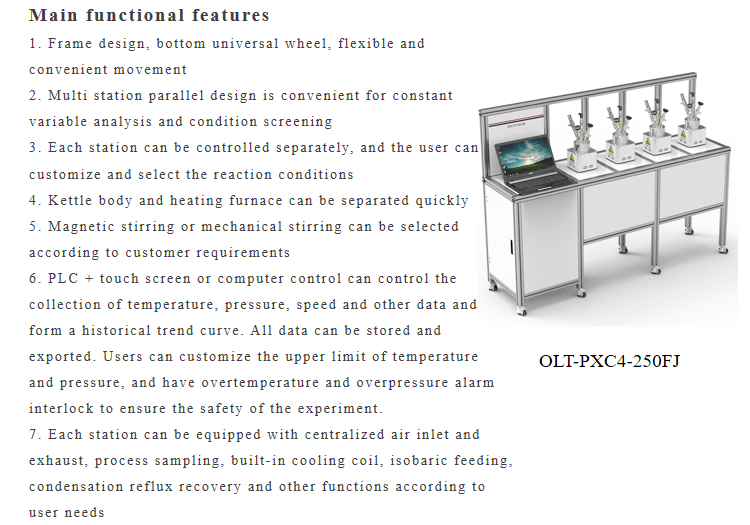

Model | OLT-PXA4-250FJ | OLT-PXB6-100YC | OLT-PXC4-250FJ |
Pisition | 4 or customize | Max 6, customize | 4 or customize |
Capacity | 50/100/250/500ml or customize | 50/150/200ml | 50/100/250/500ml or customize |
Material | Standard configuration 316L, customized Hastelloy, Monel alloy, titanium, etc | ||
Temperature | Max temperature 300℃ | Max temmperature 200℃ | Max temperature 300℃ |
Pressure | Max pressure 10Mpa | Max pressure 10Mpa | Max pressure 10Mpa |
Sealing structure | Flange structure / quick opening structure / one key quick opening structure | one key quick opening structure | Flange structure / quick opening structure / one key quick opening structure |
Stirring method | Magnetic stirring or mechanical stirring | ||
Heating method | Electric heating | Electric heating | Electric heating or customize oil bath heating |
Kettle cover opening | Mixing port * 1, air inlet * 1, exhaust port * 1, temperature measuring port * 1, pressure gauge explosion-proof disc port * 1. It can be adjusted according to customization requirements | Air inlet (common pressure gauge, explosion-proof port) * 1, exhaust port * 1, temperature measuring port * 1. It can be adjusted according to customized requirements | Mixing port * 1, air inlet * 1, exhaust port * 1, temperature measuring port * 1, pressure gauge explosion-proof disc port * 1. It can be adjusted according to customization requirements |
Control method | PLC + touch screen or computer control | PLC + touch screen control | PLC + touch screen or computer control |
Extended function | Temperature, pressure, material, process sampling, process feeding, condensation and built-in cooling coil can be customized | / | Temperature, pressure, material, process sampling, process feeding, condensation and built-in cooling coil can be customized |
