Multi position parallel reactor is an upgraded and integrated product of the basic model, which greatly saves laboratory space resources. This reactor is mainly used in laboratory parallel test, constant variable comparative analysis test, etc. It is widely used in petroleum, chemical industry, pharmacy, materials, metallurgy and other fields. Such as catalytic reaction, polymerization, supercritical reaction, high temperature and high pressure synthesis, hydrogenation, etc.

There are three types of multi position parallel reactors: A, B and C.

Specification

Model	OLT-PXA4-250FJ	OLT-PXB6-100YC	OLT-PXC4-250FJ
Pisition	4 or customize	Max 6, customize	4 or customize
Capacity	50/100/250/500ml or customize	50/150/200ml	50/100/250/500ml or customize
Material	Standard configuration 316L, customized Hastelloy, Monel alloy, titanium, etc
Temperature	Max temperature 300℃	Max temmperature 200℃	Max temperature 300℃
Pressure	Max pressure 10Mpa	Max pressure 10Mpa	Max pressure 10Mpa
Sealing structure	Flange structure / quick opening structure / one key quick opening structure	one key quick opening structure	Flange structure / quick opening structure / one key quick opening structure
Stirring method	Magnetic stirring or mechanical stirring
Heating method	Electric heating	Electric heating	Electric heating or customize oil bath heating
Kettle cover opening	Mixing port * 1, air inlet * 1, exhaust port * 1, temperature measuring port * 1, pressure gauge explosion-proof disc port * 1. It can be adjusted according to customization requirements	Air inlet (common pressure gauge, explosion-proof port) * 1, exhaust port * 1, temperature measuring port * 1. It can be adjusted according to customized requirements	Mixing port * 1, air inlet * 1, exhaust port * 1, temperature measuring port * 1, pressure gauge explosion-proof disc port * 1. It can be adjusted according to customization requirements
Control method	PLC + touch screen or computer control	PLC + touch screen control	PLC + touch screen or computer control
Extended function	Temperature, pressure, material, process sampling, process feeding, condensation and built-in cooling coil can be customized	/	Temperature, pressure, material, process sampling, process feeding, condensation and built-in cooling coil can be customized

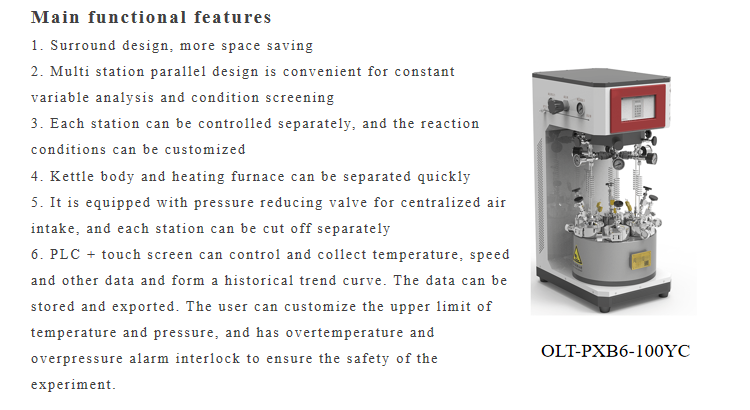

Multi Position Parallel Reactor
