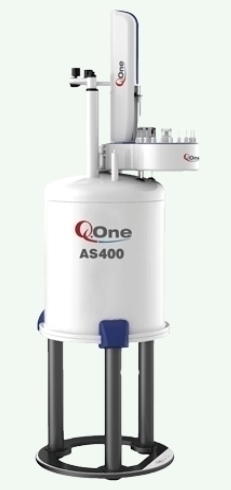

The Spectrometer 400/500/600 MHz – Q.One is a High-Field Nuclear Magnetic Resonance (NMR) device designed for physicochemical analyses of samples with high precision. It is ideal for a wide range of scientific applications, including quality assurance and control, quantitative studies, and advanced research in Materials Science and Analytical Chemistry.

Key Applications

• Physicochemical composition analyses
• Purity testing
• Quality control tests
• Advanced quantitative studies
• Modern research in porous materials, polymers, and chemical compounds

Technical Specifications

Control and Communication System

• Ethernet-based digital transmitter with integrated CAN controller receiver.
• High-speed Gigabit network connection.
• Expandable transmitter and receiver channels (up to 3 channels).
• Modular design for easy maintenance.

Transmitter Specifications

• Intermediate frequency: 922.5 MHz
• Event resolution: 25 ns
• Frequency resolution: 0.01 Hz

Receiver Specifications

• Dynamic range: ≥80 dB
• Bandwidth: 120 Hz to 2.5 MHz
• Digital resolution: 14 bits

RF Amplifiers

• Wideband amplifier: 10 MHz to 410 MHz
• Maximum CW power: 30 watts
