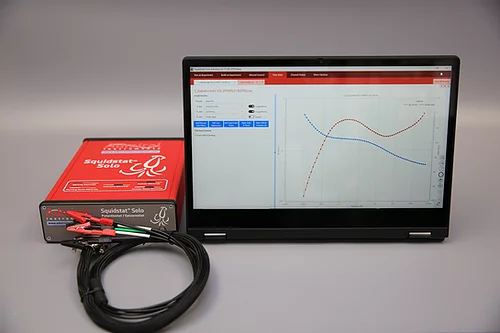

Name: Potentiostat Squidstat SOLO
Brand: Admiral
Availability: InStock

Potentiostat Squidstat SOLO - buy online

A cost-effective, single-channel potentiostat designed for everyday electrochemical measurements.

Ideal for education, method development, and general research applications where simplicity, reliability, and flexibility are essential.

1100-ongoing

Serial Numbers:

2-years

Warranty Period:

SO-2X-CS

20 Business Days ARO

Typical Lead Time:

Item Number:

Single-channel potentiostat/galvanostat
Current range: ±100 mA max
Voltage scan range: ±10 V
Compatible with Windows, MacOS, and Ubuntu via the Squidstat User Interface software and Application Programming Interface
Onboard memory (16 GB) automatically backs up all channel data for future recovery
Multiple units can run simultaneously with other Squidstat models
Made in USA

Description

Linear Sweep Voltammetry (LSV)

Normal Pulse Voltammetry

Open Circuit Potential Monitoring

Rotating Ring Disk Electrode (RRDE)

Square Wave Voltammetry

Staircase Voltammetry

Experiments

Battery Capacity

Charge / Discharge (Constant C / Constant V)

Charge / Discharge (Constant R / Constant P)

Chronoamperometry

Chronopotentiometry

Constant Power

Constant Resistance

Cyclic Voltammetry (CV)

Differential Pulse Voltammetry (DPV)
Galvanostatic Intermittent Titration Technique (GITT)

Potentiostatic Intermittent Titration Technique (PITT)

Linear Sweep Amperometry

DC Experiments

Output Parameters

DC Parameters

Additional Parameters

Working Electrode (V)
Working Electrode (mV)
DC Working Electrode (V)
DC Working Electrode (mV)
Counter Electrode (V)
Counter Electrode (mV)
Current (A)
Current (mA)

DC Current (A)
DC Current (mA)
Working Electrode vs. NHE (V)
Current Density (A/m2)

Current Density (A/cm2)
Power (W)
Cumulative Charge (mAh)
Cumulative Charge (C)

Capacity (mAh)
Energy (Wh)
State of Charge (%)
Depth of Discharge (%)
dQ/dV (mAh/V)
1 / Sqrt(time) (1/√s)
Resistance (Ohm)
No of Cycles

PC Timestamp

UTC Time (s)

Potentiostatic Input/Output	Values
Compliance Voltage	±12 V
Voltage Scan Range	±10 V
Number of Voltage Ranges	1 range, [±10 V]
Applied Voltage Accuracy	0.1% of setpoint, 1 mV min
Applied Voltage Resolution	0.003% (30.52 ppm) of range, 300 μV min
Measured Voltage Accuracy	0.1% of measured, 1 mV min
Measured Voltage Resolution	0.003% (30.52 ppm) of range, 300 μV min
Time Resolution	10 ns
iR Compensation Limits	1.82 V max

Specifications

Galvanostatic Input/Output	Values
Current Range	±100 mA
Number of Current Ranges	8 ranges, [10 nA to 100 mA]
Applied Current Accuracy	0.1% of range, 1 nA min
Applied Current Resolution	0.003% (30.52 ppm) of range, 300 fA min
Measured Current Accuracy	0.1% of range, 1 nA min
Measured Current Resolution	0.003% (30.52 ppm) of range, 300 fA min

General Specifications	Values
Channels Per Unit	1
Operating Modes	Pot / Gal / ZRA
Cell Connections	5 electrode
ADC/DAC Resolution	16-bit resolution
Slew Rate (1 kΩ load)	5 kV/s (-1 V to +1V)
Shortest DC data recording interval	200 µs
Shortest DC data hardware sampling interval	7.5 µs
Floating/Ground Mode	Both (Switchable)
Input Impedance	10 Tera-Ω (typical)
Input Bias Current	10 pA (typical)
Data Backup Memory	16 GB onboard
Dimension and Weight	24 L x 17 W x 6 H cm, 1 kg
Channel Cable Length	1 m
Computer Interface	1 USB per unit
Temperature Operating Range	0 to 40 ℃
Min/Max Scan Rate	300 µV/s minimum, 25 V/s maximum with 10 mV sampling
Smallest Pulse Width	375 µs
Smallest Potential Step for Sweep Voltammetry	0.003% (30.52 ppm) of range, 300 μV min
Square Wave Voltammetry Max Frequency	1 kHz (-1 V to +1V)
Power Supply Requirements	100 – 240 VAC, 50 – 60 Hz

Squidstat Solo Potentiostat Highlights:

Top quality single-channel functionality with a compact design
Least-expensive research-grade potentiostat in the world
Multiple units can run simultaneously with other Squidstat models
Onboard memory (16 GB) automatically backs up all channel data for future recovery

Each Squidstat Prime includes one 90 cm channel cable, one USB cable, and one power cable. The Squidstat User Interface software and unlimited remote technical support are included with purchase.

Price Per Unit ($USD)	$1,900
Channels Per Unit	1
Operating Modes	Pot / Gal / ZRA
Cell Connections	2, 3, 4, or 5 electrode
ADC/DAC Resolution	16 bit resolution
Slew Rate (No Load)	300 kV/s
Maximum Sampling Speed	100,000 samples/s
Floating and/or Earth-grounding	Both (switchable)
Input Impedance	>10 Tera-ohm (typical)
Input Bias Current	<10 pA (typical)
Data Backup Memory (Onboard)	16 GB
Physical Dimensions	24 cm x 17 cm x 6 cm
Channel Cable Length	90 cm
Computer Interface	1 USB per unit
Power Supply Requirements	100 – 240 VAC, 50 – 60 H

Compliance Voltage	±12 V per channel
Scan Range (Controlled Voltage)	1 range, ±10 V
Applied Potential Accuracy	0.1% of setpoint, 2 mV max accuracy
Applied Potential Resolution	300 µV
Measured Potential Accuracy	0.1% of setpoint, 1 mV max accuracy
Measured Potential Resolution	300 µV

Maximum Current	±100 mA
Current ranges	8 ranges (10 nA to 100 mA)
Applied Current Accuracy	0.2% of range, 1 nA max
Applied Current Resolution	0.003% of range, 300 fA max
Measured Current Accuracy	0.1% of range, 1 nA max
Measured Current Resolution	0.003% of range, 300 fA max
