Trace moisture analysers from cmc Instruments are designed to give reliable, accurate measurements in tough field service over many years. Even small traces of corrosive gases will contaminate and destroy aluminium oxide type sensors. cmc Instruments technology is just as effective in corrosive atmospheres as it is in inert gases. cmc Instruments believe in offering their customers a choice.

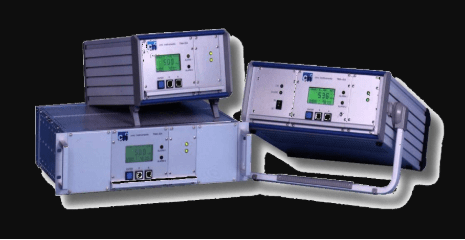

Analyser, sensor, sensor housing and sample system are all available in different options. Thus each customer receives a system tailored for their specific application. Analysers are available in bench, portable, wall mount and 19” rack formats. Fixed configurations are available for hazardous areas (Zone 1) and with the option of purge cabinet enclosures. Sensors are easily refurbished by the customer. A regular check and occasional refurbishment results in many years use from a single sensor.
Sensor housings are available in Monel, Hastelloy, PFA, stainless steel and glass. Monel is the material of choice for chlorine use and Hastelloy for hydrogen chloride and other corrosive gas use. Stainless steel offers a more economic alternative for non-corrosive applications. Sample systems can be simple or complex. For portable, noncontinuous use a lightweight system is perfect. For continuous use the sample system is usually housed in an enclosure with a purge option.
All system components are designed to withstand the most corrosive gases. For instance, PVDF flowmeters, Viton seals and PFA tubing are standard. Fittings are available in 6mm or 1/4”NPTF. Designed and manufactured in Germany these products represent quality at an affordable price. Sales engineers at cmc Instruments are waiting to offer you the best solution for your moisture measurement applications.
TMA-210
The TMA-210 series is designed for a fast response with a high flow of sample gas. Together with the easily refurbished sensor this makes it ideal for portable analysers that may be used for checking multiple locations. Complete sample systems available.
General Specification
Ranging: Autoranging, manual,
RS232, external signal (fixed
analysers only)
Ranges:
0 - 10 ppm
0 - 100 ppm
0 - 1000 ppm
0 - 2500 ppm
Digital output:
2 volt free alarm
5 volt free range
Analog output: 0 - 20mA (<500Ω)
(with range 4 - 20mA (<500Ω)
Identification) 0 - 10V (>100kΩ)
Display: LCD
Serial port: RS232 Modem
Input: 5 (range switching) (fixed
analysers only)
Sensitivity: 0.1% fsd
Operating temp.: +5oC - +50oC
Power: 80-230V, 50Hz
Typical Weights and Dimensions
Dimensions (w x h x d) mm:
257 x 160 x 316
Weights net: 6kg
Part Number |
Description |
Analyzers |
For 2xx, please choose 202, 204 or 210 For orders of the new generation, please add -NG at the end of the configuration, for example: 202-NG, 204-NG, 210-NG |
TMA-2xx |
Trace moisture analyser, benchtop version with 3m sensor cable |
TMA-2xx-P |
Trace moisture analyser, portable version with rechargeable battery and 3m sensor cable |
TMA-2xx-W |
Trace moisture analyser, wall mount version with 3m sensor cable |
TMA-2xx-19" |
Trace moisture analyser, 19" rack mount version with 3m sensor cable |
Options |
|
TMA-2xx/CM |
Checkmaster for span check |
TMA-2xx/ZB |
Zener barriers installed internally |
Sensors |
Sensors are dedicated to the analyser series (Note all sensors are also available with rhodium wire) |
TMS-SS/P/xxx |
Stainless steel housing, platinum wire sensor, 20* or 100** Nl/hr flow |
TMS-xx/P/P/xxx |
Stainless steel or Hastelloy housing, platinum wire sensor on PEEK, 20 or 100 Nl/hr flow |
TMS-H/P/xxx |
Hastelloy housing, platinum wire sensor, 20* or 100** Nl/hr flow |
TMS-G/P/xxx |
Glass housing, platinum wire sensor, 20* or 100** Nl/hr flow |
TMS-P/P/xxx |
PFA housing, platinum wire sensor, 20* or 100** Nl/hr flow |
Acessories |
|
TMF-SS/xxx |
Flowmeter, stainless steel, with needle valve |
TMF-T/xxx |
Flowmeter, PVDF, with needle valve |
TMS-H-PFA |
PFA tubing, 6mm diameter, per metre |
TMS-SC-S |
Sensor cable with standard connector, 3 metre |
TMS-SC-PEEK |
Sensor cable with PEEK® connector, 3 metre |
TMS-SC-ADD |
Additional price for longer sensor cable, per metre |
Service & Spares |
|
TMW-SET |
Complete sensor service kit including goggles, acetone, water, electrolyte, cleaning brush and screwdriver |
TMW-ELO |
Electrolyte, 150ml (suitable for all sensors) |
TMS-OR-FKM |
O-ring for sensor, Viton® |
TMS-OR-FEP |
O-ring for sensor, FEP® |
TMS-OR-Kalrez |
O-ring for sensor, Kalrez® |
